Precision Temperature Controller
Precision Temperature Controller T30 by TB Future
Precision Temperature Controller For Industrial Temperature Control
In demanding industrial environments, precision temperature control isn’t just beneficial, it is also essential. Whether you’re working with composite materials, curing resins, or maintaining heat for process consistency, the TB Future T30 Smart Temperature Controller delivers powerful, reliable, and smart thermal management. Designed specifically for electric industrial heating blankets, this device combines rugged design, intelligent features, and user-friendly controls for unmatched performance.
If you’re looking for high-quality heating solutions used in various applications. From windmill blade repair heating blankets to epoxy curing heating blankets, visit our industrial heating blankets collection, the perfect pairing industrial heating solutions for the T30 controller.
Why the T30 Stands Out?
The TB Future T30 is built with a deep understanding of industrial heating needs. It converts sensor signals into accurate digital data, giving real-time readouts and allowing tight control over every step of your heating process.
Key Features:
- Smart PID Control – Adjustable proportional, integral, and derivative parameters ensure responsive and stable temperature control.
- Over Temperature Alarm – A loud alert triggers 150°C for safety critical operations.
- Supports up to 7000W – Perfect for heavy duty applications in industrial environments.
- Glove-Friendly Buttons – Built for on-site operability in challenging conditions.
- Connectable Safe Plug – Easy plug, twist and fasten to secure to blanket. Multiple controllers connectable for sensitive heating applications
- Built-In Lock Function – Prevents unauthorized changes to settings.
- Power On indicators – neon light and sound alarm to alert user the controller is Heating
- Power Instant Heat – Controller ramps up temperature as soon as plugged in to power outlet
- Beginner friendly – featuring clear large white display and safety alarms when exceeding recommended temperature threshold
- Lightweight for mounting one or more to heating products
Built for Industrial, Precision Temperature Control
With tough, IP54-rated casing, the T30 is ready for workshops, construction sites, and production lines. The interchangeable heater socket works across all TB Future heating solutions, while a bright white-on-black LED display ensures visibility in all lighting conditions. For sensitive industrial heating requirements, we offer multiple controllers connectable, two or three sensor controllers or a combination of the two solutions.
What Does a Second Temperature Sensor Do?
While the first sensor sets the temperature, second sensor can be made to measure actual temperature or to act as a backup second in more sensitive applications. For inquiries about T30 Temperature Controller by TB Future, ask us using chat feature or contact us here.
Technical Specs include:
- Voltage: 230V (UK) / 110V (US)
- Sensor: PT-100 Thermistor
- Display Range: 0–150°C with 1°C resolution
- Power Rating: Up to 7000W
- Dimensions: 156mm × 88mm × 63 mm
Download TB Future T30 Catalog
Key Features:
-
- Advanced Automation: Supports multi-stage, programmable curing cycles.
- Smart Safety: Features time-controlled operations with automatic shut-off.
Programmable Temperature Curves
One of the most powerful features of the T30 is its multi-stage heating system. You can set up to six temperature stages (TS1–TS6), each with start/end temperatures and timing. This allows precise thermal ramp-up and hold cycles which are ideal for composite curing, epoxy setting, or other temperature-sensitive processes.
The curve begins automatically at TS1 and ends either after six stages or when a time segment is set to zero. This functionality gives you unmatched flexibility and control.
Easy Interface for Advanced Control
Navigating settings is simple:
- Press SET to enter the menu
- Use UP and DOWN to adjust parameters
- Access full configuration (with password 18) for advanced options like:
- SPL / SPH – Lower and upper temperature limits
- HP / HI / Hd – PID coefficients
- Curve Segments (TS/TE/TC) – Stage-based heating profiles

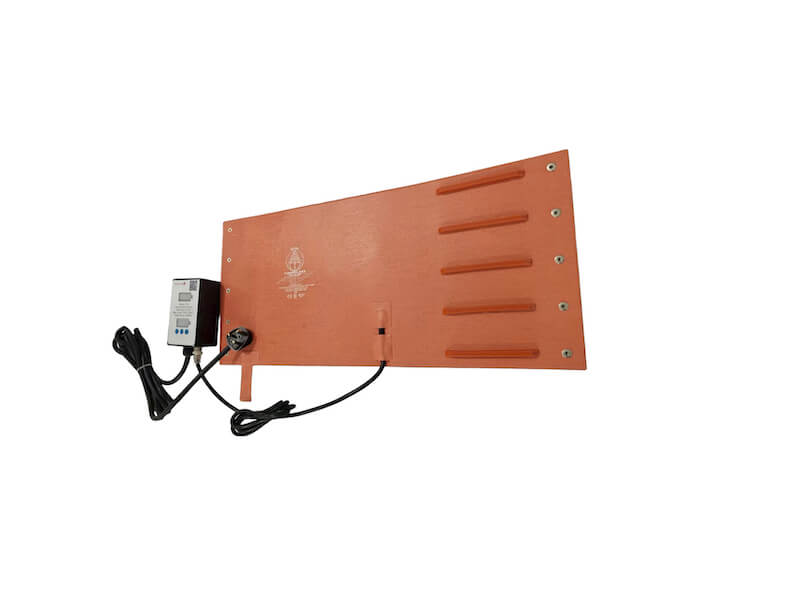

Perfect Companion for OTA Fiberglass Heating Blankets
The T30 controller is fully compatible with OTA Fiberglass full range of heating solutions. For best results, pair it with OTA Fiberglass industrial heating blankets, engineered for efficient heat transfer and safe curing. Together, they deliver precision and reliability in even the most demanding applications.
Power Large, Complex Heating Projects
Efficiently distributed heating is crucial, most critically during production processes and custom application heating. PT-100 PID control technology powering your T30 smart temperature controllers make programmable heat stages and time-controls available for custom heating project solutions.
If your operations depend on dependable, precise temperature control, the TB Future T30 Smart Temperature Controller is an investment in quality, safety, and efficiency. From programmable heating cycles to built-in protections and flexible compatibility, it’s the smart choice for today’s industrial heating challenges. These heating solutions are available powered by TB Future T30 smart temperature controllers with PT-100 thermostats
- Industrial Heating Blankets
- Standard Drum Heaters (0–200°C)
- IBC Heating Systems
- Concrete Curing Blankets
- Heating Tapes
- Immersion Heaters
- Cartridge Heaters
- Ceramic Heating Elements
- Gas Cylinder Heaters
