Aerogel Blanket Thermal Insulation Material -NSA Series Blanket

 Nano silica Aerogel Blanket-NSA Blanket Series

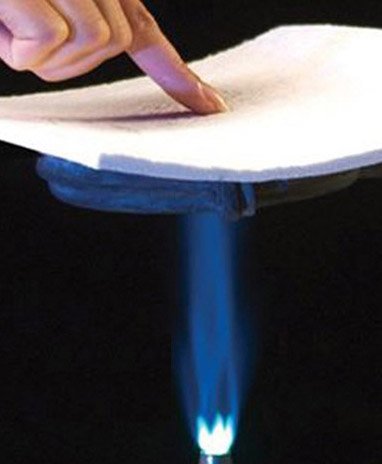

Fireproof Aerogel Blanket

High-performance Insulation Material Nano Silica Aerogel –NSA Blanket Series

Aerogel Blanket is the new, improved solution for the insulation industry. We developed the Nano Silica Aerogel -NSA Blanket Series by combining Fiberglass with Nano-aerogels. Its long service life as it is reusable over and over again after detaching alongside its ease of installation and removal makes it a very compelling insulation solution. In addition to Nano-aerogels measuring the lowest thermal conductivity among the known solids, NSA Blanket Series Aerogel composite nano-silica materials are soft, inorganic, and environmentally friendly Extreme-thermal insulation material solutions for both high and low temperatures. And we designed the NSA Blanket Series to answer the existential issue that’s forever plagued production lines.

Our Aerogel Insulation’s key Advantages are flexibility, hydrophobic, lightweight with low density, and very low thermal conductivity. Compared with traditional materials, it has exceptional physical and chemical properties such as

  • Sound absorption
  • Flame retardancy
  • Water and corrosion resistance / hydrophobic
  • 5 Times the Heat resistance of traditional insulation
  • Very lightweight
  • Easy installation / blanket flexibility
  • Hygienic safety

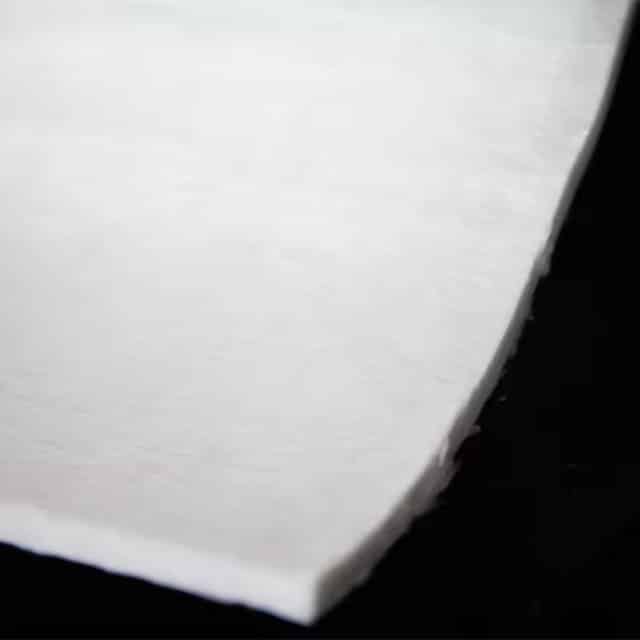

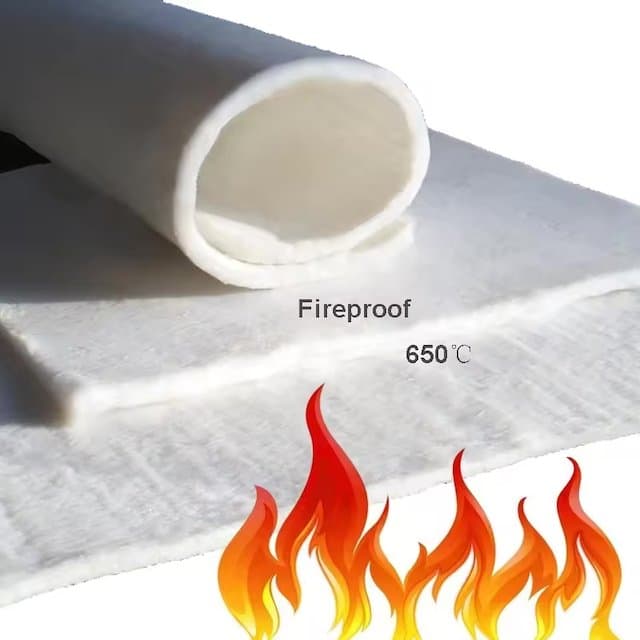

fireproof nano silica aerogel blanket
From Fiberglass & Nano Silica Aerogel -NSA7 By OTA Fiberglass

What Is An Aerogel Blanket Made Of?

Fiberglass and Aerogel- a synthetic porous ultralight material derived from a gel, where the liquid component of the gel has been replaced with a gas. The resulting solid has extremely low density and low thermal conductivity. It is also known as frozen smoke, solid smoke, solid air, or blue smoke due to its translucent nature and how the way light scatters inside the material. It feels like expanded polystyrene to the touch.

How Are Aerogels Made?

Aerogels are produced by extracting the liquid component of a gel through supercritical drying which allows the liquid to be slowly dried off without causing the solid matrix in the gel to collapse from capillary action, unlike conventional evaporation.

Aerogel Blanket Hydrophobic Insulation All-In-One Solution

As the all-in-one solution, NSA Aerogel Blanket Series reduces installation costs by eliminating the need for coatings and additional structural support typically required by traditional PFP solutions. It not only protects the asset at high temperatures but also answers the problem of insulation vs corrosion with its corrosion prevention under insulation! NSA Aerogel Blankets cover various insulation needs. See NSA Aerogel Blanket Series Properties & Applications Below

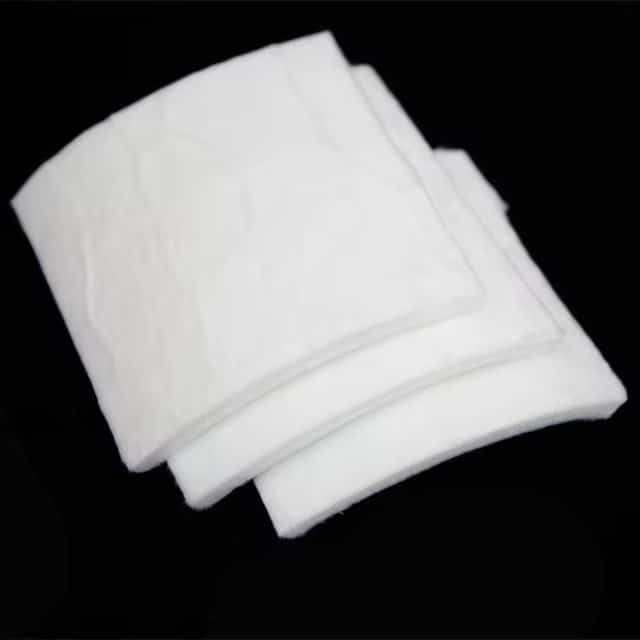

High Temperature Resistant Aerogel Sheet

Aerogel Blanket Features (See Specific NSA Blanket Features Here)

  • OTA Fiberglass Warranty -For Life
  • Aerogel blanket density -200kg/m3
  • Temperature range- -200°C to 800°C (-328°F to 1472°F)
  • Color -White
  • Fire rating -A grade non-combustion
  • Thickness: From 3mm
  • Hydrophobic – 99.5% which means it will not absorb water. So, moisture from condensation is not a problem
  • Material: Fiberglass + Nano Silica Aerogel
  • Thermal Conductivity: 0.012 – 0.018w/m·k (At 25℃)
  • Low Temperature Bending: ≤99%
  • Breaking Elongation: 65%
  • Bending Strength: 45KP
  • Compressive Strength: 32N
  • Application Scope: Various high-temperature pipes and other structures

nano silica hydrophobic aerogel Wall Insulation

Aerogel Blanket Features

Easy to Install: Flexible and lightweight, the Nano Aerogel Felt is simple to construct for efficient insulation.

Fire Resistance: A1 grade incombustible material, offering superior fire safety for industrial applications.

Environmental Protection: Crafted from new nanomaterials, Nano Aerogel insulation material is eco-friendly and sustainable.

Versatile Thickness Options: Available in 3mm, 6mm, 10mm, and higher thicknesses to suit various insulation needs.

High-Temperature Fiber|Mylar Insulation| High-Temperature Resistance: Operates up to 800°C, ensuring reliable thermal insulation in extreme conditions.

Insulation Vs Corrosion Protection -Never Again

NSA Series Aerogel insulation prevents your facility from choosing between protection and performance. The risk of corrosion under insulation (CUI) increases with the time an asset is in contact with water. By keeping pipes, tanks, and equipment drier for longer, our NSA Aerogel blanket insulation delivers superior defense built with anti-corrosion protection at its core, literally!

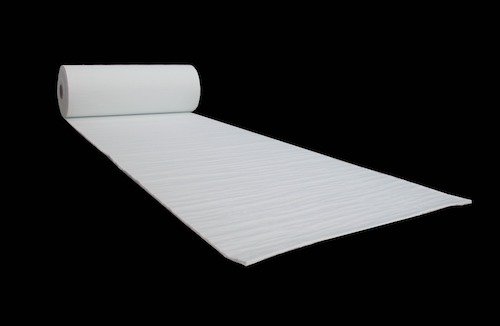

NSA Series Aerogel Blanket

NSA7/Pyrogel XTE/Spaceloft (High Temperature Insulation)



The remarkable properties of our NSA series extend beyond thermal efficiency. Their lightweight and flexible nature makes it easy to handle and install, minimizing the time and effort required during insulation projects. Unlike bulky and space-consuming conventional insulation materials, they can be cut and customized, enabling precise fitting even in tight or irregular spaces.

25ºC Thermal Conductivity W/(m·K) 0.017 ~0.023 W/(m·K)
Working Temperature -50ºC – 1202ºC (= -58 °F-1,202 °F)

    • aerogel blanket corrosion prevention insulation

    NSA8/Cryogel Z (Low Temperature Insulation)

    NSA8 Aerogel blanket is a flexible, low-temperature and high-efficiency cold-proof felt. This material combines nano-aerogel with special glass fiber to produce flexible, ultra-low thermal conductivity, high-efficiency thermal insulation felt, suitable for liquid nitrogen, and other low-temperature industrial pipes, LNG plants, tanks and equipment that are cold-proof.

    Cold Proof Features

    • NSA8 Ultra-low thermal conductivity, Reduced thickness suitable for applications with limited space. Excellent ultra-low temperature stability
    • Maintains good flexibility at ultra-low temperature without cracking and resists internal stress caused by pipe expansion and contraction.
    • Convenient construction: lightweight, easy to cut and sew to adapt to various pipe shapes and equipment insulation with less time and labor required for installation.
    25ºC Thermal Conductivity W/(m·K) 0.017 ~0.023 W/(m·K)
    Working Temperature -200ºC – 1202ºC (= -328 °F-392 °F)

    NSA9/Pyrogel XTF (High Temperature Insulation)

    NSA9 delivers all of the benefits of NSA7 with the addition of passive fire protection. This lighter, thinner insulation option supports up to 2 hours of passive fire protection under the ISO 22899-1 standard, and represents the thinnest solution at higher 350kW/m2 flux, NSA9 can be applied without process interruption and offers immediate protection.

    With a thermal conductivity up to ten times lower than traditional insulation materials, this aerogel blanket offers unparalleled insulation performance. Its nanoporous structure prevents heat transfer, confining it within the space it’s applied, resulting in minimal heat loss and reduced energy consumption. As a result, heating costs can be significantly reduced.

    NSA9 Working temperature from -50ºC to 800ºC is our ideal option for better insulation performance and lower energy consumption.

    25ºC Thermal Conductivity W/(m·K) 0.017 ~0.023 W/(m·K)
    Working Temperature -50ºC – 800ºC (= -58 °F-1,472 °F)

    Aerogel Blanket Application

     With the characteristics of softness, easy cutting, low density, inorganic fire resistance, overall hydrophobicity, and environmental protection; It can replace glass fiber products, asbestos insulation felt, silicate fiber products, and other traditional Products that are not environmentally friendly and have poor insulation performance insulation Materials.

    Aerogel Blanket Wrapping Pipe Insulation Aerogel Blanket Application Aerogel Blanket Application Tank

    Aerogel Blanket Application Pipe
    Aerogel Felt Application On Pipe
    Aerogel Sheet Pipe Application
    Aerogel Felt Installation
    Aerogel Blankets are mainly used in industrial pipelines, storage tanks, industrial furnace bodies, power plants, rescue cabins, warship bulkheads, motor cars, directly buried pipelines, injection molding machines, detachable insulation sleeves, high-temperature steam pipelines for heavy oil mining, transportation, Household appliances, steel, non-ferrous metals, glass and other fields of thermal insulation.
    NSA Series Aerogel Blankets have significant application value in civil, industrial, construction, transportation, aviation, military, daily chemical, electronic information, and more as it is exceptional under environmental conditions requiring flame retardant, high temperature, and low-frequency noise absorption becoming an irreplaceable insulation solution in the new materials industry.

    NSA Series Aerogel Blankets For Better Insulation & Profitability

    ZERO Downtime

    Can be applied with no process interruption and offers immediate protection.

    • Faster Application

    Earlier handover and project turnaround times with simple, easy to install – lighter, thinner, and more flexible blankets – compared to less affection oversized traditional insulation

    • Simplified Logistics

    Simplified product logistics, no more heaps of bulky insulation material for inadequate insulation or insulation that compromises your profitability

    • Reduced Costs Through Flexibility & Reuse

    Removable and reusable for future inspections, lowering cost. Our NSA Series protects your assets so you can focus on what’s most important—people and productivity

    • Superior Asset Protection

    With better corrosion under insulation defense with little to no further inspection, maintenance, or repair cost required

    • Better results both and in the future

    Use insulation that resists water and mechanical damage 2-5 times better-lowering material and energy consumption costs today. With superior process stability resulting in less maintenance and operational costs.

    • Versatile application with no limits

    Being lighter, and more flexible than traditional insulation (without breaking). NSA Series blankets are easily applicable to every asset regardless of size or shape

    • Solves other complex asset protection problems

    Being waterproof, extremely low density while also allowing hot air/steam to escape in tight space -a complete insulation for the most extreme conditions

    Aerogel Felt Silica Aerogel Thermal Insulation Size

    About OTA Fiberglass Engineering®

    OTA Fiberglass Engineering® Scope/Services: Aerogel Insulation Blankets, Anti Corrosion Tapes, Lamination Butt Wrap Joints for Frp, Gre, bonding, butt-joint, adhesive joint, chemical, lifting belt, piping, pipeline, RTRP, thermosetting resin. 6″ PDO / ARAMCO / RASGAS / ADNOC / GRE Pipes RTRP Pipes, FPI Pipes, FRP Pipes non metallic pipe Malayalam Hindi English CPI Pipes, FGS Pipes, Amipox, And More.

    OTHER TOOLS, EQUIPMENT & MACHINERY:

    Pipe Shaver, Heating Blanket, Anticorrosion Tape, Barcol Tester, Laminating Rollers/Brushes, Catalyst Dispenser, Diamond Cutters, Sanding Wheels, PI Tapes, Circometer, Thickness Measuring Gauge, Demoulding Wedges.

    WE OFFER LAMINATION MATERIALS, TOOLS & MORE: – Please contact us through Chat – Online Now – For Stock Pickups and 3-5 Day Delivery -Available 24/7

    Contact Us

    Chat Now
    Email: h@OTAFiberglass.com / sales@OTAFiberglass.com
    Other ways to contact us: Quick inquiry form
    OTA Fiberglass Headquarters: International Market, King Abdulaziz St, Al Anud, Dammam 32427, Saudi Arabia
    Call/Text: +966 56 469 7032 (KSA) / 058 032 2208 / 059 275 1918

    OTA Fiberglass YouTube Page

    OTA Fiberglass Facebook PageOTA Fiberglass Google Map Directions

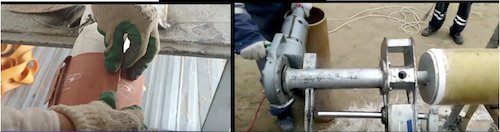

    See Related Product: Heating Blanket and Pipe Shaver
