How to Laminate Fiberglass Pipes with Adhesive Joints | Guide

Laminating fiberglass pipes with adhesive joints is a precise and critical process, particularly in GRE (Glass Reinforced Epoxy) and GRP (Glass Reinforced Polyester) piping systems. These pipes are widely used in industries such as water treatment, oil and gas, chemical handling, and infrastructure, due to their corrosion resistance and long service life.

The method of laminating fiberglass pipes with adhesive joints ensures both chemical sealing and mechanical reinforcement, offering high durability, leak resistance, and structural strength. This process, when performed correctly, results in a long-lasting bond capable of withstanding harsh industrial environments.

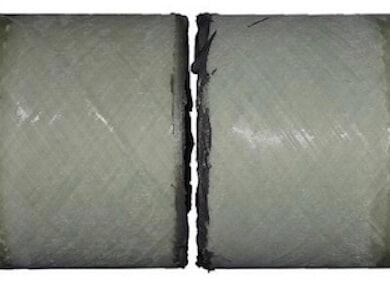

Adhesive Joint _ GRE GRP Pipes
Adhesive Joint _ GRE GRP Pipes

Step 1: Surface Preparation

The quality of the adhesive bond begins with meticulous surface preparation.

  • Cleaning: Ensure that the spigot and socket ends of the pipes are clean, dry, and free from grease, dust, or other contaminants. Use a solvent to remove any residues.
  • Precision Tapering: For tapered joints, the spigot end must be shaved to the proper angle and diameter to ensure a snug, uniform fit. Use a pipe shaver tool designed specifically for fiberglass pipes to achieve accurate and consistent tapers. A well-prepared taper ensures that adhesive is evenly distributed and that there are no air gaps within the joint.

Using OTA Fiberglass pipe shaver supports this critical step in laminating fiberglass pipes with adhesive joints. It is a professional-grade machine engineered for precision surface preparation across GRE and GRP pipes.

Key Features:

Compatible with GRE & GRP pipes.

Multiple size pipes in one pipe shaver.

Compatible with major pipe manufacturers.

High-precision blade assembly for smooth, even shaving.

Adjustable cutting depth for various pipe diameters and thickness.

Ergonomic, automated PowerDrive design reduces operator fatigue.

Discover the OTA Fiberglass Pipe Shaver for detailed specifications and purchase options.

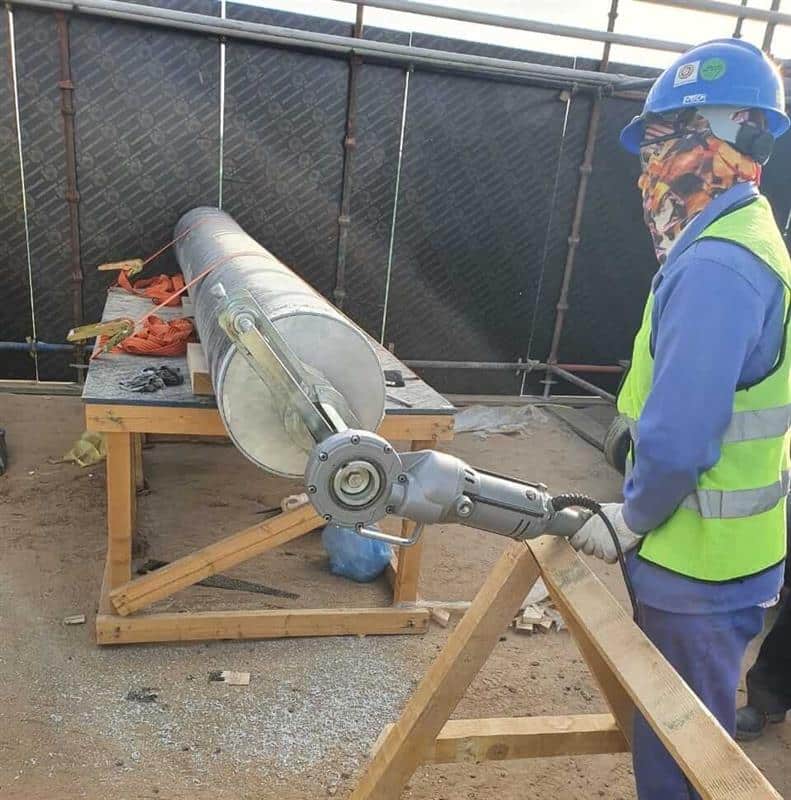

OTA Fiberglass pipe shaver joints to fit the male spigot into the female Pipe end.
OTA Fiberglass Pipe Shaver

Step 2: Adhesive Application

A two-component epoxy adhesive is typically used for bonding fiberglass pipes due to its strong bonding properties and chemical resistance.

  • Application: Using a wooden spatula, apply the adhesive evenly on both the internal surface of the socket and the external surface of the spigot. Uniform application is essential to avoid dry areas or excess buildup, both of which can compromise the bond.

Step 3: Joining and Assembly

  • Insertion: Insert the spigot into the socket with a gentle rotating motion. This ensures better adhesive joint spread and helps eliminate trapped air.
  • Alignment: Maintain proper alignment during insertion. Misalignment at this stage can lead to joint failure or the need for rework.
  • Excess Removal: Wipe off any excess adhesive that squeezes out during insertion to maintain a neat finish.

Step 4: Curing

Curing is the phase where the adhesive hardens chemically and forms a permanent bond.

  • Cure Time: Depend on each manufacturer recommendation and project specifications.
  • Heating Blanket: Apply the blanket after joint assembly, when the adhesive becomes tacky. Maintain the recommended curing temperature throughout the process to achieve optimal bonding strength.

The OTA Fiberglass Heating Blanket is a professional-grade curing solution engineered for adhesive joint applications in GRE and GRP piping systems. It delivers precise and uniform heating during the curing process, ensuring optimal bond strength and long-term performance.

  • Provides even heat distribution across the joint area to eliminate hotspots and ensure consistent curing
  • Adjustable temperature settings for compatibility with different adhesive curing requirements
  • Lightweight, flexible design allows quick wrapping and secure fit on pipes of various sizes
  • Equipped with power and heater-on neon indicators for easy monitoring
  • Operates at any desired curing temperature up to 200°C

Explore our OTA Fiberglass Heating Blankets to learn more and request a quote.

OTA Fiberglass Heating Blanket
OTA Fiberglass Heating Blanket

Additional Tips and Considerations

  • Safety: Always use PPE, including gloves, eye protection, and respirators when working with adhesives joints and fiberglass.
  • Material Compatibility: Confirm that the adhesive is compatible with the specific type of pipe (GRE or GRP).
  • Environmental Control: Conduct bonding in a clean, dry environment. Protect the work area from wind, moisture, and contaminants.

Conclusion

Laminating fiberglass using adhesive joints is a reliable and efficient method for joining GRE and GRP pipes. Attention to detail at every stage, from surface prep and adhesive mixing to joining and curing is critical for a durable, high-strength bond. When performed correctly, this method offers a long-lasting, corrosion-resistant connection that meets the demands of industrial and infrastructure applications.

For more detailed information, technical support, or to discuss your specific application requirements, please, get in touch with our team. We’re here to provide expert guidance, product recommendations, and tailored solutions to help ensure the success of your project.
