GRE Pipe Lamination Heating Blankets

In the world of GRE (Glass Reinforced Epoxy) and RTR (Reinforced Thermosetting Resin) piping systems, quality and durability depend heavily on the precision of field operations, especially during lamination and joint curing. Improper curing can lead to compromised bond strength, leaks, or even premature system failure.

One of the most effective tools to ensure proper curing in fiberglass/grp/rtr pipe installation is the Heating Blanket. Specifically, OTA Fiberglass Heating Blankets are engineered to deliver reliable and controlled heat for lamination joints on GRE and RTR pipes, ensuring consistent results across a variety of site conditions.

Why Proper Curing and GRE Pipe Lamination Heating Blankets Matter?

Lamination involves bonding layers of fiberglass and epoxy resin to create a strong joint between pipe segments or fittings. For adhesives to cure correctly, they require controlled heating within a specific temperature range. Environmental variables, such as ambient temperature, humidity, and wind can easily disrupt the composite pipe curing process in field environments.

This is where a well-designed heating solution becomes essential. OTA Fiberglass Heating Blankets provide:

Uniform temperature distribution

Controlled curing time

Safe operation on-site

Adaptability across pipe sizes and voltages

Without consistent curing temperatures, the mechanical strength and chemical resistance of the laminate can be severely affected.

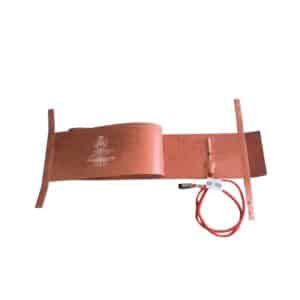

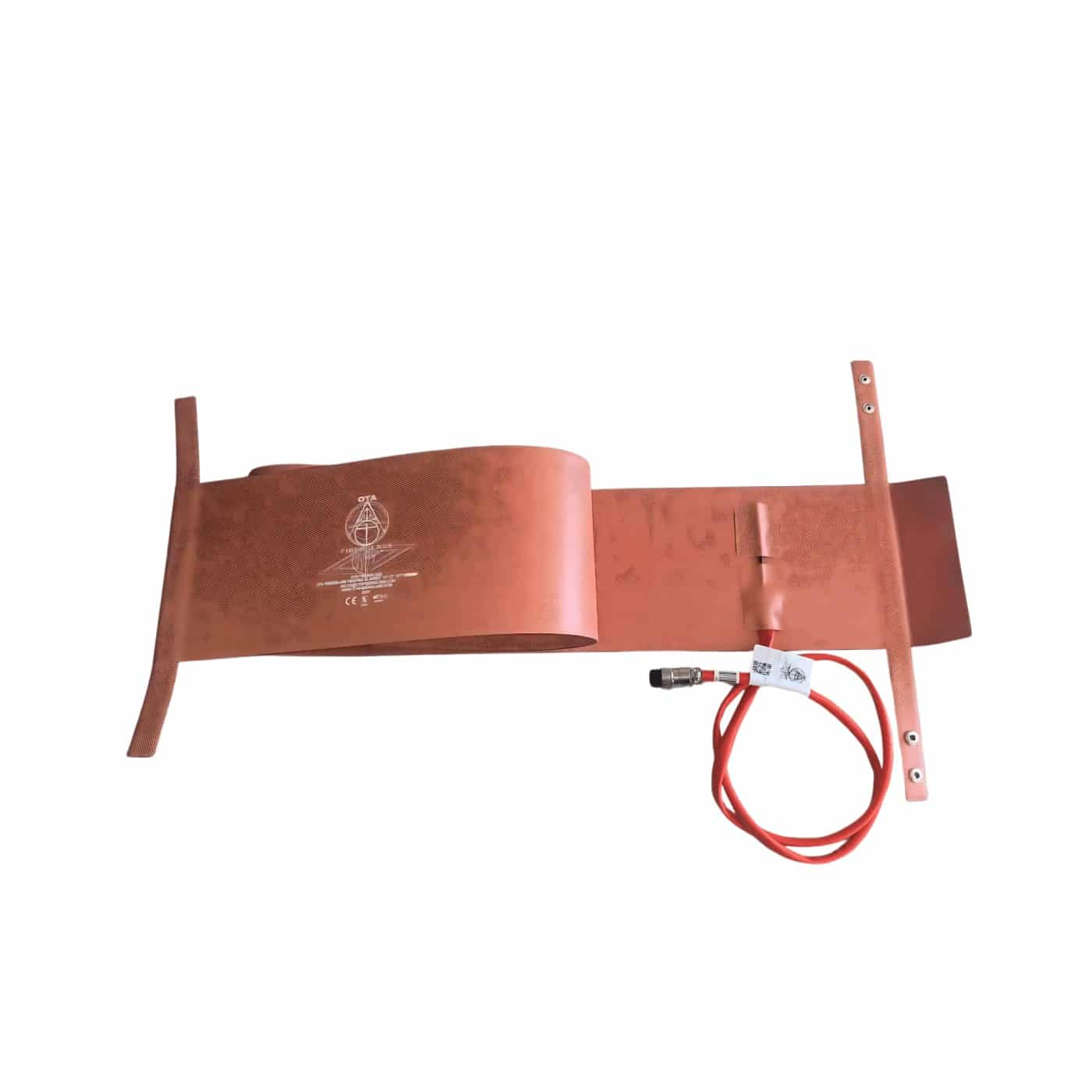

What Makes OTA Fiberglass Heating Blankets Unique?

OTA Fiberglass Engineering has designed their heating blankets with both performance and safety in mind. Whether you’re working on small-diameter pipes or large main lines, OTA Fiberglass offers heating blankets in a wide range of sizes from 25 mm up to 1000 mm.

Key Features:

Voltage Options: 110V or 220V, making them suitable for global operations.
Temperature Range: 50°C to 150°C (adjustable), with a max blanket capacity up to 200°C.
Built-in Regulator: Each blanket includes a built-in dial thermostat, while an optional OTA Fiberglass Regulator offers precision control (±0.01°C).
Plug-and-Twist System: Universal connectors simplify blanket swaps and avoid miswiring on-site.
Safety Indicators: Power and heater-on neon lights ensure visibility and safety during use.
Durability: Flexible and robust materials built to withstand rough handling and high temperatures.

These features make OTA heating blankets particularly effective for pipe joint curing, laminations, and butt-wrap applications.

Curious how our heating blankets perform in real-world conditions? Watch OTA Heating Blankets in Action

Check out this short demo video: Watch on YouTube

How to Use GRE Pipe Lamination Heating Blankets in the Field

A proper curing setup can be the difference between success and costly rework. Below is a step-by-step overview of how to use OTA Heating Blankets effectively fiberglass/grp/rtr pipe installation:

Step 1: Prepare the Pipe Joint

Before applying the heating blanket, ensure the lamination process is complete:

Align pipe ends (butt joint).

Perform surface grinding.

Apply adhesive and glass reinforcement.

Wrap with resin impregnated mat and tape.

Let the resin partially solidify before applying heat to avoid blanket damage.

Step 2: Select the Correct Blanket

Using the wrong-sized blanket leads to uneven heat or damage. OTA’s manuals emphasize size-matching as essential. Each pipe diameter has a corresponding blanket dimension. Choosing the right GRE pipe lamination heating blanket ensures even curing.

Step 3: Wrap the Heating Blanket Properly

Always apply the blanket in a single layer configuration.

Avoid overlapping the blanket, which can increase internal temperature.

Use the attached spring and buckle straps to hold the blanket comfortably against the pipe.

Step 4: Monitor and Maintain Safety

Do not touch the surface of the blanket during or after curing.

Wait at least 30 minutes post-operation before handling.

Avoid using the blanket in wet or damp conditions to prevent short circuits.

Never fold or kink the blanket during storage.

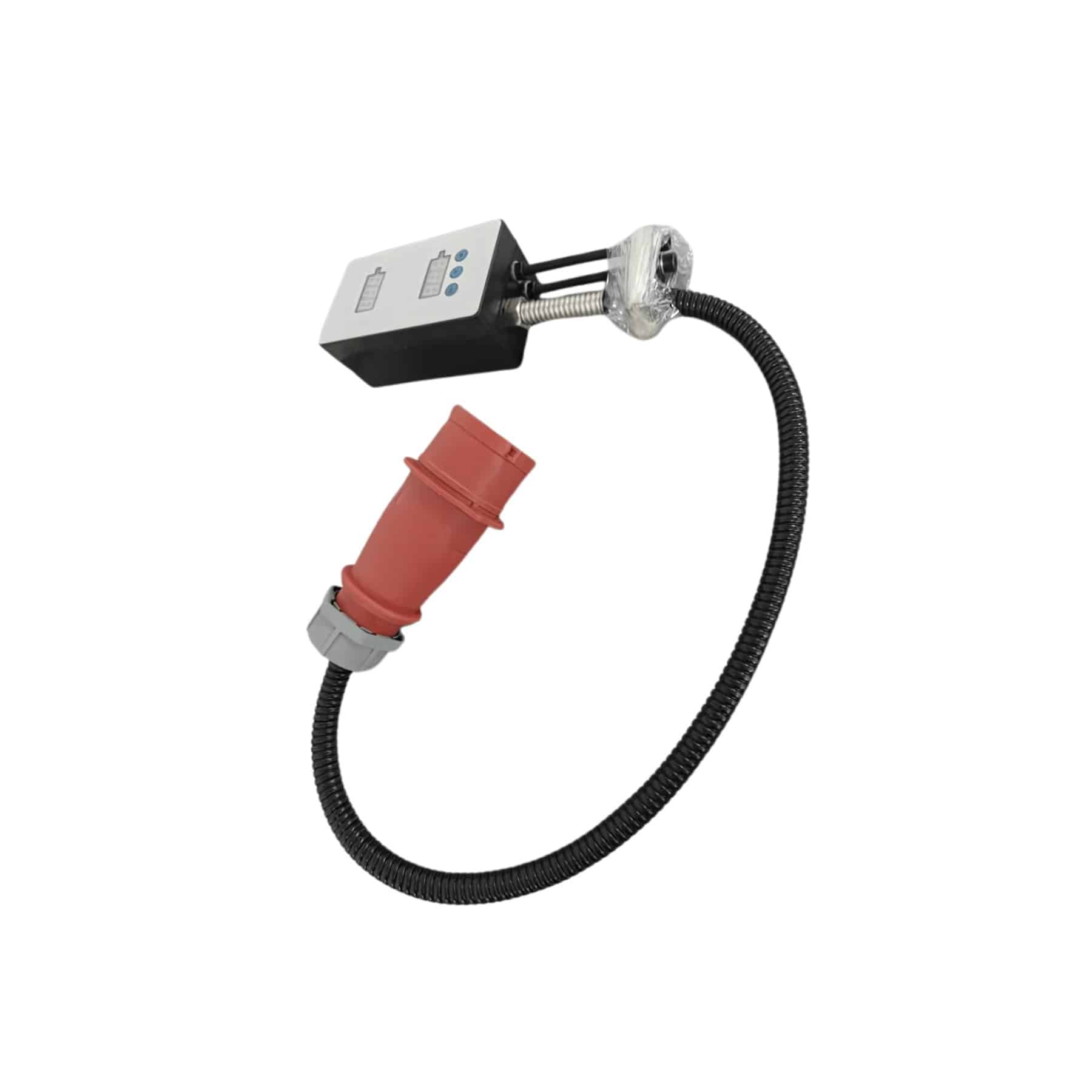

Why the TB Future T30 controller is a Game Changer

While OTA’s blankets come with an integrated temperature controller, field conditions often demand precision. The TB Future controller:

Smart temperature set-point control for precise curing

Countdown timer mode with clear minute-based display

Large, easy-to-read digital interface

Interchangeable heater socket compatible with any curing blanket up to 7000W (230V/120V)

Built-in lock function to prevent unauthorized setting changes

Indicator neon lights for heater status and timer mode

Available in 230V (50–60Hz, UK plug) and 110V (50Hz, US plug) variants

Heat cycle timer counts down accurately to zero, ensuring precise cure completion

Lockable program settings to maintain consistent curing temperatures throughout the process.

Whether you’re managing multiple heating zones or working on thick, high-pressure GRE pipes, this tool offers greater control and peace of mind.

Common Mistakes to Avoid

Using an Oversized Blanket: Causes overlapping → overheating → blanket damage.

Skipping the Solidification Step: Applying the blanket too early can deform the resin layer.

Operating in Wet Conditions: Water + electricity = short circuits and injury.

Touching the Blanket During Operation: Surface remains hot after shutdown.

Avoid these mistakes to ensure safe, efficient operation. Proper handling and correct sizing of GRE pipe lamination heating blankets are essential.

Warranty & Support

OTA Fiberglass Heating Blankets come with a lifetime warranty covering workmanship and materials. In the rare case of a manufacturing defect, OTA offers free replacement or repair, including the digital regulator.

Their global network of distributors and 24/7 technical support ensures you have access to help whenever and wherever you need it.

Conclusion: The Right Heat for the Right Cure

GRE and RTR pipe systems are only as strong as their weakest joint—and improper lamination curing is a hidden liability in many projects. With OTA Fiberglass Heating Blankets, field installers gain precise control, consistent results, and long-term reliability.

From offshore platforms to chemical plants, these heating solutions are field-tested and engineer-approved to help you get the job done right the first time.
